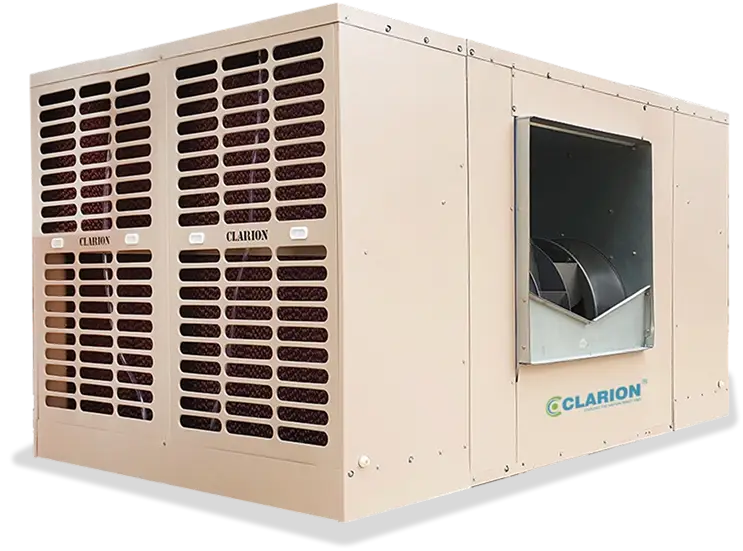

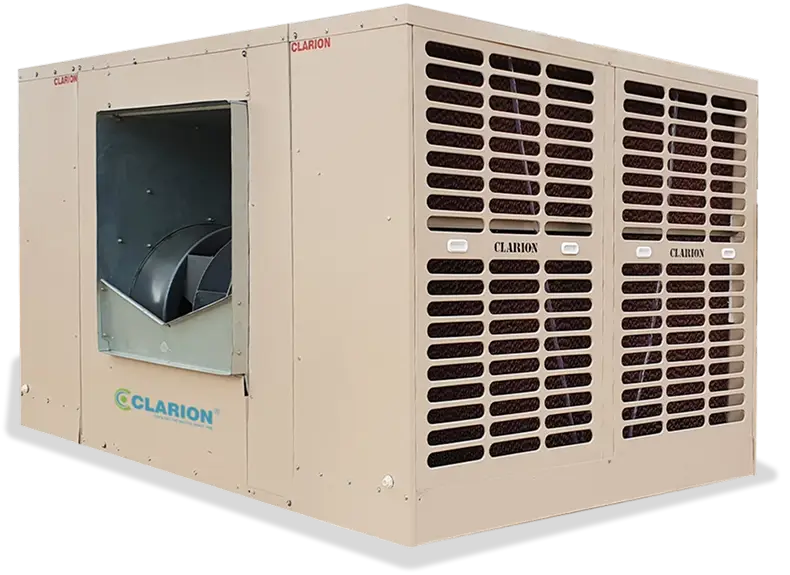

Whether used to cool an entire facility or simply to spot cool specific areas, Dual inlet duct air coolers are loaded with thick commercial rigid media which supplement and/or replace mechanical refrigeration needs. The dual inlet duct cooler is an ideal cooling solution for commercial, industrial, institutional or agricultural facilities and buildings that require moving large quantities of fresh air. Laundries, gymnasiums, kitchens, heat-treating areas and dry cleaning plants are perfect candidates for energy efficient evaporative cooling.

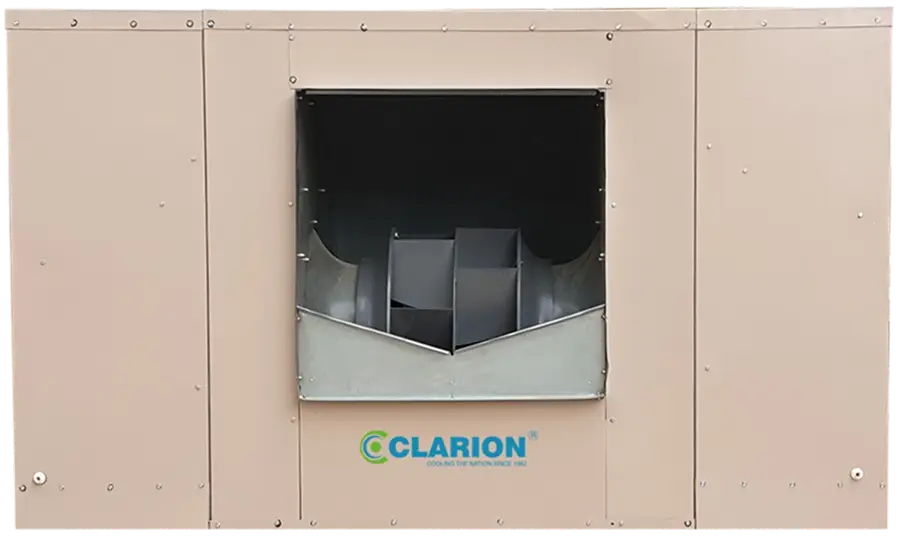

Dual inlet duct series is design for large volume air delivery at high static pressure it can supply air volume upto 75,000 CMH at 80 MM static. Designed smartly this series is loaded with two wet sections which can load large water capacity and high efficiency thick cooling pads which can cool down large area in short span of time. The Industrial blower fan are designed to provide maximum efficiency and air delivery. The blower wheel are dynamically balanced and paired with long life bearings to

Whether used to cool an entire facility or simply to spot cool specific areas, Dual inlet duct air coolers are loaded with thick commercial rigid media which supplement and/or replace mechanical refrigeration needs. The dual inlet duct cooler is an ideal cooling solution for commercial, industrial, institutional or agricultural facilities and buildings that require moving large quantities of fresh air. Laundries, gymnasiums, kitchens, heat-treating areas and dry cleaning plants are perfect candidates for energy efficient evaporative cooling.

Dual inlet duct series is design for large volume air delivery at high static pressure it can supply air volume upto 75,000 CMH at 80 MM static. Designed smartly this series is loaded with two wet sections which can load large water capacity and high efficiency thick cooling pads which can cool down large area in short span of time. The Industrial blower fan are designed to provide maximum efficiency and air delivery. The blower wheel are dynamically balanced and paired with long life bearings to

Features

DIMENSIONAL DATA

Clarion gives you the opportunity to buy the product the way you required, which results in saving a huge amount on your investments & running cost.

Double inlet series is available from 10,000 CFM to 25000 CFM.

Specification

  • Perfect for buildings that require large quantities of fresh air.
  • Uses highly efficient rigid media.
  • Proven alternative to costly mechanical refrigeration systems.
  • Constructed of heavy galvanized steel.
  • Available in side draft, down draft and updraft configurations.
  • Belt included with dry section.
  • Metal skids under each module for roof mounting. Lift brackets are supplied for lifting to installation site.

WE CARE

Preventive Maintenance During Summers

  • Recycle The Water Tank Every Week To Avoid Scaling Of Salt
  • Clean & Dry The Water Tank After Every 15 Days
  • Cleaning The Cooling Media And Panels After 15 Days
  • cleaning The Water Distribution Channels & Pipes
  • Cleaning The Evaporative Cooler From Outside
  • Lubricate The Motor And Pump
  • Cross-examine All Electrical Connections

Preventive Maintenance After Summers

  • Make Sure To Dry & Clean The Water Tank
  • Cleaning The Cooling Media (Cellulose Pads And Panels)
  • Remove The Cooling Media If Wood Wool
  • Lubricate The Fan And Motor
  • Clean The Cooler From Outside
  • Pack The Cooler With Corrugated Box.

Tips And Tricks

  • Make Sure Water Pump Is On
  • Keep Windows And Doors Open For Cross Ventilation
  • ensure Proper Installation In Window Of Window Air Cooler
  • Make A Direct Water Connection To Avoid Dry Run
  • Make Sure You Use Clean Water Which Avoids Scaling On Pads And Gives Maximum Evaporation.
