Download Brochure

50,200.00

*Inclusive of all taxes and shipping charges.

Low Energy Consumption.

Aluminium Air Diverters.

Enormous Water Capacity Of 120 Litres

High Volume Delivery 30-Inch Axial Fan.

SKU: CL/ID/CY/120 Categories: , Tags:

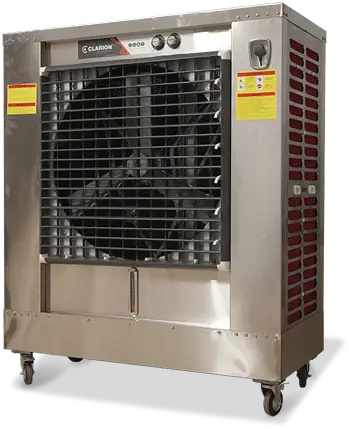

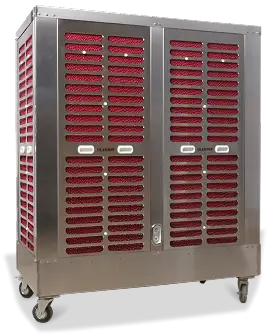

Maintain the factory’s comfort with the most powerful industrial air cooler Cyclone 120 packs the biggest cooling punch by combining impressive airflow with the large three-sided cooling media. The 304 Grade Stainless Steel Casing and perfectly calculated media surface give it a long life cooling and durability. Cyclone 120  industrial cooler can be installed in a window, duct, or on portable wheels.





Specification

Model CYCLONE 120
SIZE (MM) 1244x609x1346
MATERIAL 304 GRADE STAINLESS STEEL
COOLING MEDIA 100 MM HONEYCOMB
FAN SIZE 30″ AXIAL  FAN
FAN RPM 950*
REMOTE OPTIONAL
SPEED CONTROL 3 SPEED
VOLTAGE 220V,50HZ
PUMP SUBMERSIBLE
WATER CAP 120 liters
COOLING CAP Up to 2500 Sqft *
LOUVERS  MANUAL

We Care

Preventive Maintenance During Summers

  • Recycle The Water Tank Every Week To Avoid Scaling Of Salt
  • Clean & Dry The Water Tank After Every 15 Days
  • Cleaning The Cooling Media And Panels After 15 Days
  • cleaning The Water Distribution Channels & Pipes
  • Cleaning The Evaporative Cooler From Outside
  • Lubricate The Motor And Pump
  • Cross-examine All Electrical Connections

Preventive Maintenance After Summers

  • Make Sure To Dry & Clean The Water Tank
  • Cleaning The Cooling Media (Cellulose Pads And Panels)
  • Remove The Cooling Media If Wood Wool
  • Lubricate The Fan And Motor
  • Clean The Cooler From Outside
  • Pack The Cooler With Corrugated Box.

Tips And Tricks

  • Make Sure Water Pump Is On
  • Keep Windows And Doors Open For Cross Ventilation
  • ensure Proper Installation In Window Of Window Air Cooler
  • Make A Direct Water Connection To Avoid Dry Run
  • Make Sure You Use Clean Water Which Avoids Scaling On Pads And Gives Maximum Evaporation.
